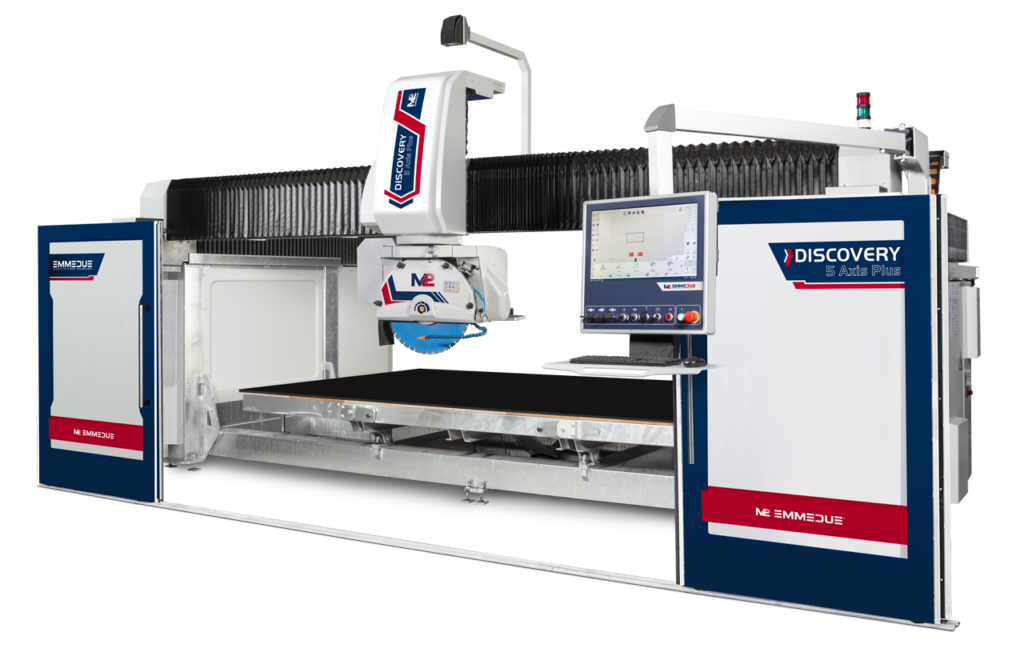

DISCOVERY 5 Axis Plus

THE MOST POWERFUL BRIDGE SAW OF ITS CATEGORY.

  • Blade diameter: 24,60 Inch
  • Power: 24 HP

It is equipped with a suction cups device, used to move cut pieces to increase the production process while reducing processing time.

Automatic bridge saw with 5 interpolated axis. Machine frame and work table made of hot galvanized dipped electro-welded steel that guarantees high water resistance.

The blade motor has 24Hp - 17.6 kW power, can reach a maximum speed of 6000 Rpm and it can cut thicknesses up to 200 mm with disc max Ø 625 mm.

Digital brushless type axis drives, coupled with high precision gear motors, linear guides with recirculating balls protected by bellows, allow to do cuts extremely precise.

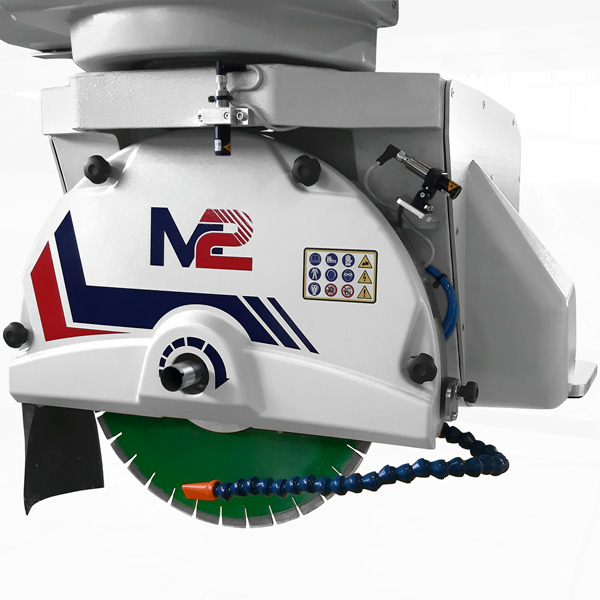

The automatic rotation of the head 370°, the automatic tilting head from 0 ° to 90 °, a Multi-touch 22” display easy to use, allow to perform orthogonal, sideways, elliptical, circular, tilted, straight, concave, arched convex profiles, two and three-dimensional solid excavations, exploiting axis interpolation.

The Z axis is driven by a balls circulation screw.

The optional side spindle allows to perform cutting, drilling and milling cycles automatically, without stopping the machine for tools’ change, thus increasing its productivity.

The Discovery 5 Axis Plus is ideal for indoor and outdoor designs such as kitchen countertops, vanity tops, capitals, tables, sinks, stairs, floors and funerary art.

Windows based system, integrated with machine control board, Multi-Touch 17” control panel with innovative and interactive M2 Easy Cad interface, guarantee easy, simple and intuitive control operations.
Machine electronics are controlled by brand name products known throughout the world that guarantee easy replacement in the event of fault.
LAN connection and USB port to load files from external devices.

The Cad Cam software (Opt.) manages and optimizes all the phases of the process: from the design and/or import of file, the definition of machining strategies, to the estimated timing and control of collisions with 3D simulation, through the provision of parts and underparts on the work table.

  • Automatic generation of roughing cycles, coring, drilling, finishing, profiling, pocketing and polishing.
  • Free drawing of geometric entities arches, bi-arcs,lines, rectangles, squares, ellipses, circles, regular polygons, joints, chamfers, construction designs.
  • Drawing from predefined parametric models: vanitytops, kitchen tops, tables, including managing the downside, the canals and the sink, etc.
  • Definition of guided basic three-dimensional surfaces, starting with sections and/or guidelines drawn on the XY plane (frames, shower trays, concave convex sinks, sinks in multiple sections).
  • Write in different fonts also shaped profiles, including characters in italics, characters with drills, working downside, relief and engraving with sharp edges, fenerary art.
  • Nesting manual, facilitates and optimize arrangement of the pieces on the worktable.
